DJ XPLOD SLIM Series
Professional 1U Class-D Digital Power Amplifiers
Professional Performance. Compact Design.
The DJ XPLOD SLIM Series is a premium range of professional 1U Class-D digital power amplifiers engineered to deliver exceptional performance, efficiency, and reliability for the most demanding audio applications. Designed for touring professionals, rental companies, system integrators, clubs, auditoriums, houses of worship, corporate venues, and live sound engineers, the SLIM Series combines powerful output with an ultra-compact and lightweight 1U rackmount design.
Powered by an advanced Class-D amplifier platform and a high-efficiency Switch Mode Power Supply (SMPS), the SLIM Series provides outstanding power density while reducing heat generation and power consumption. Its stable 90–260VAC universal operating voltage ensures dependable performance even in locations with fluctuating power conditions, making it an excellent choice for professional audio systems across India and international markets.
Whether you’re driving line array systems, full-range loudspeakers, stage monitors, or subwoofers, the DJ XPLOD SLIM Series delivers crystal-clear sound, powerful bass response, and exceptional control with the reliability required for continuous professional use.

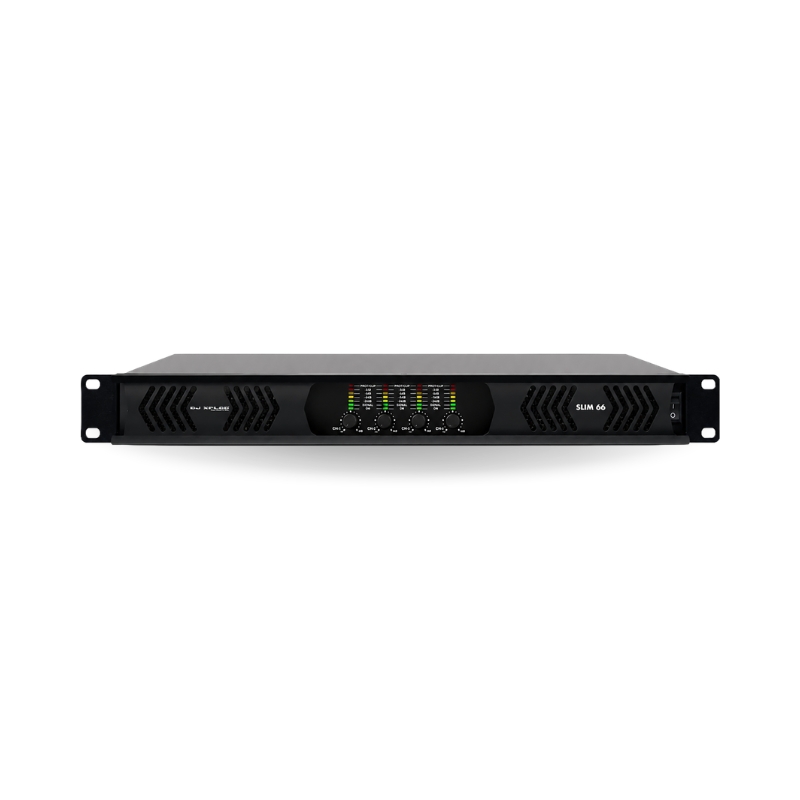

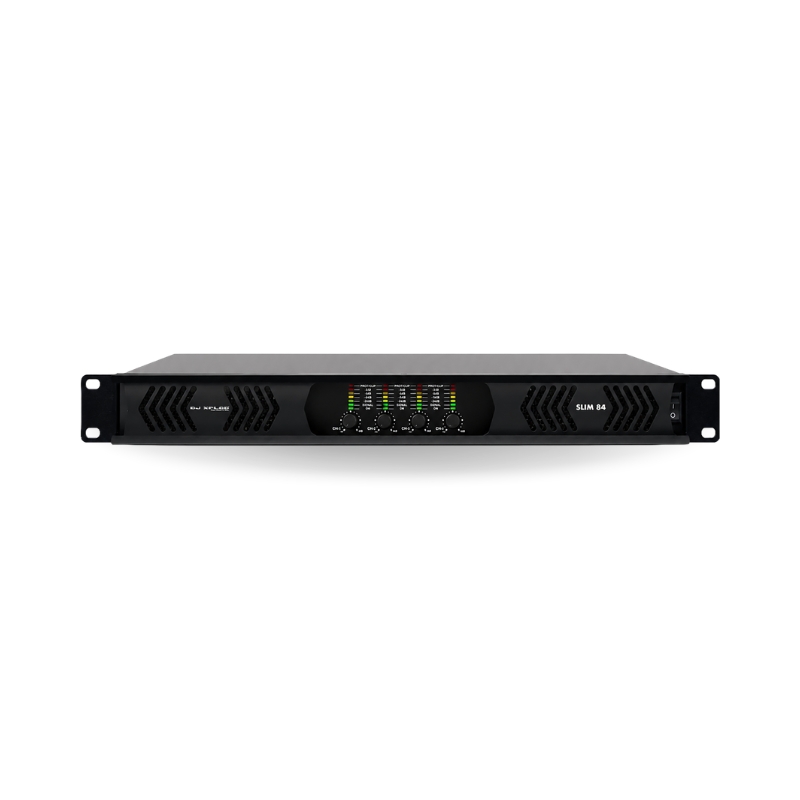

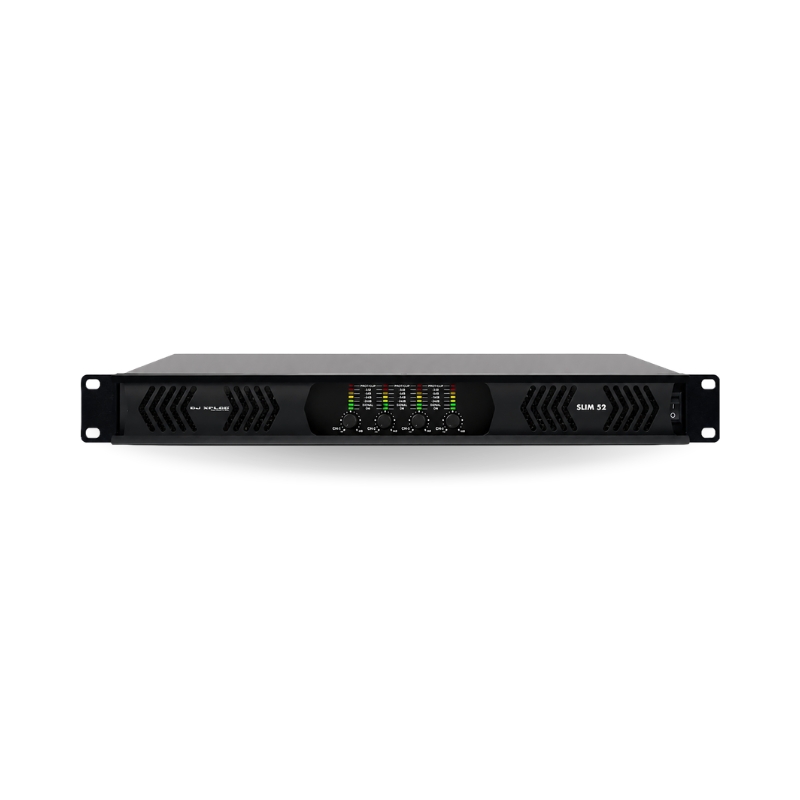

Available Models
| Model | Channels | 8Ω Stereo | 4Ω Stereo | Bridge @ 8Ω | Weight |
|---|---|---|---|---|---|
| SLIM 52 | 4 | 4 × 800W | 4 × 1300W | 2 × 2600W | 5.8 kg |
| SLIM 66 | 4 | 4 × 1000W | 4 × 1650W | 2 × 3300W | 6.5 kg |
| SLIM 84 | 4 | 4 × 1300W | 4 × 2100W | 2 × 4200W | 6.8 kg |
Each model is designed to provide high output power while maintaining the compact footprint and lightweight construction that modern audio professionals demand.
Key Features
Ultra-Compact 1U Rack Design
The DJ XPLOD SLIM Series is built with a standard 19-inch, 1U rackmount chassis, allowing maximum power in minimal rack space. Its compact design makes transportation easier while enabling more efficient rack installations for touring systems, rental inventories, and permanent installations.
Highlights
- Standard 19-inch rackmount design
- Ultra-slim 1U height
- Lightweight construction
- Easy system integration
- Ideal for portable and touring racks
Advanced Class-D Amplifier Technology
The SLIM Series utilizes a high-performance Class-D amplifier architecture that delivers impressive output power with exceptional efficiency. This modern amplifier technology minimizes energy loss and significantly reduces heat generation compared to conventional amplifier designs.
Benefits
- High efficiency exceeding 92%
- Low heat dissipation
- Reduced power consumption
- High power density
- Excellent long-term reliability
Professional SMPS Power Supply
A high-efficiency R-SMPS (Resonant Switch Mode Power Supply) ensures stable and consistent performance even under demanding operating conditions. The advanced power supply incorporates LLC Resonant Soft Start and Active Power Factor Correction (PFC) for improved efficiency and enhanced power stability.
Power Supply Features
- High-Efficiency SMPS
- LLC Resonant Soft Start
- Active Power Factor Correction (PFC)
- Stable 90–260VAC operation
- Fast transient response
- Reliable continuous performance
Exceptional Audio Performance
Engineered for professional sound reinforcement, the DJ XPLOD SLIM Series delivers powerful low frequencies, detailed midrange reproduction, and smooth high-frequency response. The amplifier provides excellent transient accuracy and maintains exceptional clarity even during high-output operation.
Designed to deliver:
- Powerful Bass Response
- Clear Mid Frequencies
- Smooth High Frequencies
- Excellent Dynamic Range
- Low Distortion Audio
Intelligent Cooling System
To ensure dependable operation during long performances, the SLIM Series features an intelligent cooling system with temperature-controlled variable-speed fans and optimized front-to-rear airflow. This design efficiently dissipates heat while reducing unnecessary fan noise when operating at lower temperatures.
Comprehensive Protection Circuitry
Professional applications demand maximum reliability. The DJ XPLOD SLIM Series incorporates multiple protection systems to safeguard both the amplifier and connected loudspeakers during demanding operating conditions.
Protection Features include:
- Soft Start
- DC Protection
- High Frequency Protection
- Infrasonic Protection
- Short Circuit Protection
- Overload Protection
- Thermal Protection
- Peak Limiter
- Clip Limiter
- Mute Protection
These advanced protection systems help ensure uninterrupted operation and long service life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Amplifier Class | Class-D |
| Rack Size | Standard 19-inch |
| Height | 1U |
| Input Impedance | >20kΩ Balanced / >10kΩ Unbalanced |
| Frequency Response | 20Hz–20kHz (±0.5dB) |
| THD+N | <0.005% |
| Signal-to-Noise Ratio | >104dB |
| Damping Factor | >800 |
| Slew Rate | >20V/µs |
| Input Sensitivity | 32dB / 1V / 0.775V |
| Minimum Load | 4Ω |
| Cooling | Front-to-Rear Variable Speed Fans |
| Operating Voltage | AC 90–260V, 50/60Hz |
Front Panel Features
The front panel is designed for intuitive operation and quick system monitoring.
Features include:
- Power Switch
- Four Independent Channel Gain Controls
- LED Level Meters
- Signal Indicators
- Protect Indicators
- Clip Indicators
- DJ XPLOD Branding

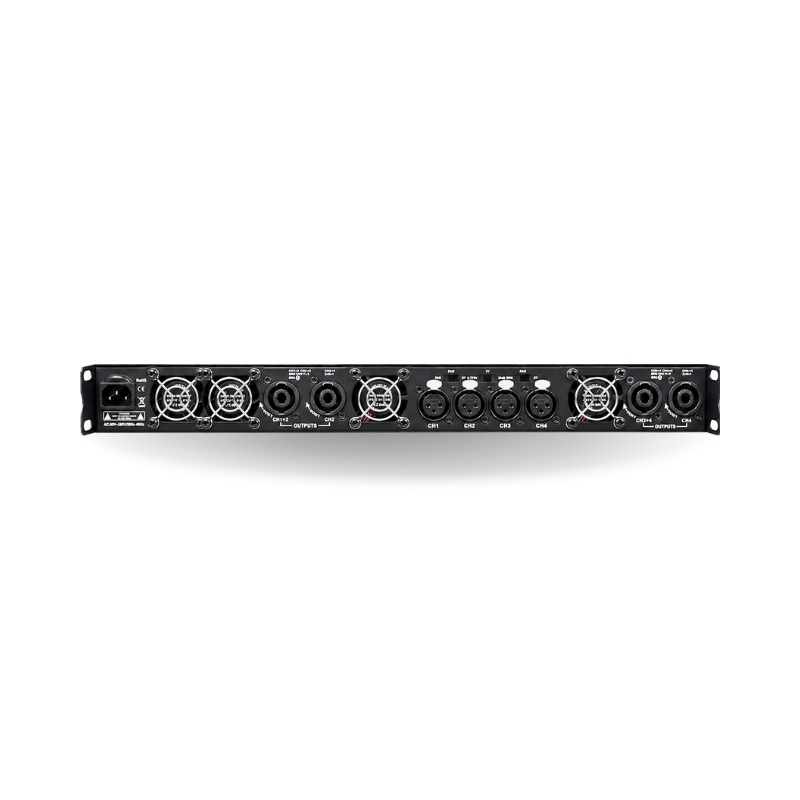

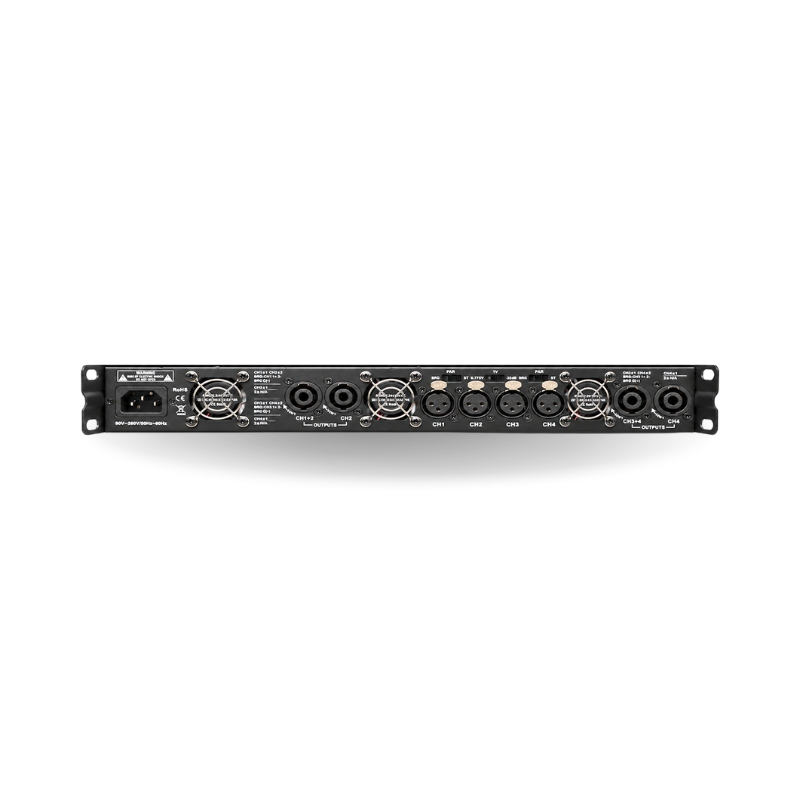

Rear Panel Connectivity
The professional rear panel provides flexible connectivity for installation and touring applications.
Rear panel features include:
- IEC AC Power Input
- Four Balanced XLR Inputs
- Four SpeakON Speaker Outputs
- Bridge Mode Selection
- Input Sensitivity Selector
- Professional Cooling Ventilation Layout
Ideal Applications
The DJ XPLOD SLIM Series is engineered for a wide range of professional audio environments, including:
- Professional DJ Systems
- Live Sound Reinforcement
- Touring Productions
- Rental Companies
- Clubs & Bars
- Auditoriums
- Convention Centres
- Houses of Worship
- Marriage Palaces
- Outdoor Events
- Corporate Events
- Fixed Audio Installations
Why Choose DJ XPLOD SLIM Series?
- Ultra-Compact 1U Design
- 4-Channel Architecture
- Advanced Class-D Technology
- High-Efficiency SMPS
- Universal 90–260VAC Input
- Active PFC
- Intelligent Cooling
- Comprehensive Protection
- Touring Ready
- Built for Professional Audio
FAQs
What is the operating voltage of the DJ XPLOD SLIM Series?
The SLIM Series supports a universal AC input of 90–260VAC, making it suitable for a wide range of power conditions.
Is the DJ XPLOD SLIM Series suitable for touring?
Yes. The lightweight 1U design, high power density, and advanced protection features make it ideal for touring, rental, and live sound applications.
Does the SLIM Series use Class-D technology?
Yes. The entire series is built on a high-efficiency Class-D amplifier platform with an SMPS power supply.
